Decoding Landscape Design Symbols: A Comprehensive Guide

Landscape design is a complex field that combines art, science, and a bit of engineering. Understanding the visual language used in landscape plans is crucial for anyone involved in the process, from homeowners to professional contractors. This guide aims to decode the often-mysterious world of landscape design symbols, providing a comprehensive overview for interpreting these essential elements.

Whether you’re planning a small garden makeover or a large-scale commercial project, recognizing and understanding landscape design symbols is the first step towards bringing your vision to life. This article will explore the common symbols used in landscape architecture and design, explain their meanings, and provide tips for interpreting landscape plans effectively.

Why Understanding Landscape Design Symbols Matters

Landscape design symbols act as a universal language for communicating design ideas. They allow architects, designers, and contractors to efficiently convey information about plant species, hardscape materials, site features, and construction details. Without a clear understanding of these symbols, misinterpretations can lead to costly mistakes and unsatisfactory results. This is why a good grasp of landscape design symbols is vital.

Accuracy: Symbols ensure precise representation of design elements.
Efficiency: They save time and space compared to lengthy descriptions.
Clarity: Standardized symbols reduce ambiguity and potential errors.
Professionalism: Using and understanding symbols demonstrates competence and expertise.

Common Categories of Landscape Design Symbols

Landscape design symbols can be broadly categorized into several key areas. These include plants, hardscape, site features, utilities, and construction details. Let’s delve into each category to understand the common symbols used and their meanings.

Plant Symbols

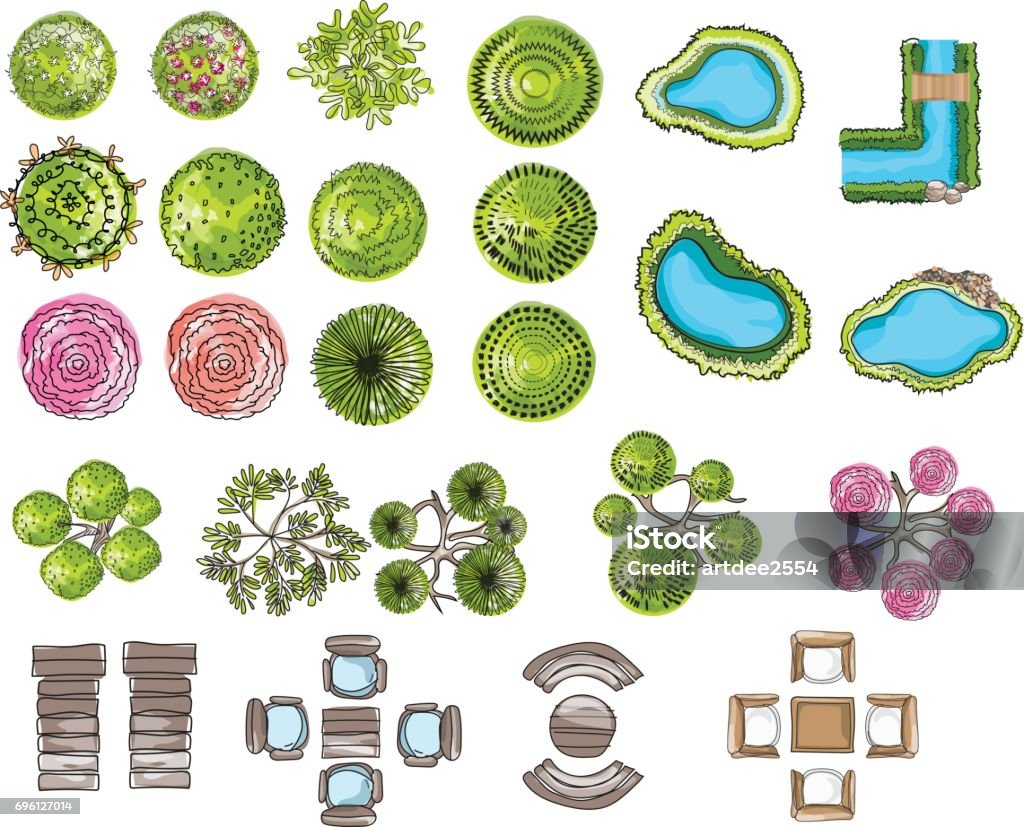

Plant symbols are used to represent different types of vegetation, including trees, shrubs, groundcovers, and flowers. These symbols often indicate the plant’s mature size, shape, and density. Understanding plant symbols is crucial for planning the layout and aesthetic of a landscape. [See also: Choosing the Right Plants for Your Landscape Design]

Trees: Typically represented by circles with varying diameters indicating the tree’s crown spread. Some symbols also include information about the tree’s shape (e.g., oval, irregular).
Shrubs: Often depicted as irregular shapes or clusters of circles representing the shrub’s foliage.
Groundcovers: Usually shown as shaded areas or patterns covering the ground surface.
Flowers: May be represented by small circles or specific floral shapes, depending on the level of detail required.

Different plant species can be further differentiated by labels or abbreviations within the symbol. For example, “ACR” might indicate *Acer rubrum* (Red Maple). Checking the legend on the landscape plan is essential for accurate identification. Remember, accurate landscape design symbols for plants are important.

Hardscape Symbols

Hardscape refers to the non-living elements of a landscape, such as paving, walls, fences, and water features. Hardscape symbols are used to represent these features on landscape plans. These symbols are usually patterns or lines, accurately portraying the materials and dimensions of each element. These landscape design symbols are critical to understanding the structural elements of the design.

Paving: Represented by patterns indicating the type of material (e.g., brick, concrete, stone). Different patterns denote different paving materials.
Walls: Shown as thick lines, sometimes with hatch patterns indicating the wall’s material (e.g., brick, stone, wood).
Fences: Depicted as dashed or solid lines, often with posts indicated by small squares or circles.
Water Features: Represented by irregular shapes or patterns indicating the presence of water (e.g., ponds, fountains, streams).

It’s important to pay attention to the scale of the plan when interpreting hardscape symbols. The thickness of a line representing a wall, for instance, will correspond to the actual thickness of the wall in the landscape. The accuracy of these landscape design symbols allows for precise construction.

Site Feature Symbols

Site feature symbols represent existing elements on the site, such as buildings, utilities, and topography. These symbols help designers understand the constraints and opportunities presented by the site. Accurate representation of site features is crucial for developing a successful landscape design. These landscape design symbols help integrate the new design with the existing environment.

Buildings: Shown as outlines of the building’s footprint.
Utilities: Represented by specific symbols indicating the location of underground pipes, cables, and other utilities.
Topography: Depicted by contour lines indicating the elevation of the land.
Existing Vegetation: May be shown as existing trees or shrubs, often with notes indicating their condition and whether they will be preserved or removed.

Utilities and Irrigation Symbols

These landscape design symbols are particularly important for the safety and functionality of the landscape. Knowing where utilities are located prevents accidental damage during construction. Irrigation symbols, meanwhile, indicate the layout of sprinkler systems and water sources.

Water Lines: Represented by dashed blue lines.
Gas Lines: Represented by dashed yellow lines.
Electrical Lines: Represented by dashed red lines.
Sprinkler Heads: Usually shown as small circles with a spray pattern.

Construction Details Symbols

Construction detail symbols provide specific information about how elements of the landscape will be built. These symbols are often found on detailed construction drawings and are essential for contractors to accurately implement the design. Understanding construction detail landscape design symbols is crucial for ensuring the structural integrity and longevity of the landscape.

Footings: Shown as outlines of the foundation for walls or other structures.
Drainage: Represented by symbols indicating the location of drains, pipes, and other drainage features.
Grading: Depicted by arrows and numbers indicating the direction and amount of slope.

Tips for Interpreting Landscape Design Plans

Interpreting landscape design plans can be challenging, especially for those unfamiliar with the symbols and conventions used. Here are some tips to help you effectively interpret landscape plans:

Study the Legend: The legend is a key component of any landscape plan. It provides a list of all the symbols used and their corresponding meanings. Always refer to the legend when interpreting symbols.
Pay Attention to Scale: The scale of the plan indicates the relationship between the drawing and the actual landscape. Understanding the scale is essential for accurately interpreting dimensions and distances.
Consider the Context: Interpret symbols in the context of the overall design. Consider how the different elements interact with each other and how they contribute to the overall aesthetic and function of the landscape.
Ask Questions: If you’re unsure about the meaning of a symbol or any other aspect of the plan, don’t hesitate to ask questions. Consult with the landscape designer or contractor for clarification.
Use Online Resources: Many online resources provide information about landscape design symbols and conventions. These resources can be helpful for supplementing your understanding of landscape plans.

The Importance of Standardized Symbols

While many landscape design symbols are relatively standardized, variations can exist. The American Society of Landscape Architects (ASLA) promotes standardization to ensure clear communication. Using standardized symbols minimizes confusion and errors, leading to smoother project execution. This standardization of landscape design symbols greatly contributes to the efficiency and accuracy of the process.

The Future of Landscape Design Symbols

As technology advances, the way landscape designs are created and communicated is evolving. Computer-aided design (CAD) software and building information modeling (BIM) are becoming increasingly common, allowing for more detailed and accurate representations of landscape designs. These technologies also enable the creation of 3D models and virtual reality simulations, providing a more immersive and interactive experience for clients. The use of landscape design symbols will likely integrate further into these digital platforms.

Conclusion

Understanding landscape design symbols is essential for anyone involved in the landscape design process. By learning to interpret these symbols, you can effectively communicate your vision, avoid costly mistakes, and ensure the successful implementation of your landscape design. Whether you’re a homeowner, a contractor, or a landscape professional, mastering the language of landscape design symbols will empower you to create beautiful and functional outdoor spaces. As this guide demonstrates, understanding these symbols is a fundamental skill, paving the way for accurate communication and successful landscape projects. Keep this guide handy as a reference whenever you encounter landscape design symbols in your projects.
